10″ Daisy Floor and Wall Vent

From: £60

Daisy pattern drilled wall and floor vent in choice of finishes, painted black as standard or lacquered grey. Available from stock in single brick (10×4 inch) and double brick (10×7 inch)

These grilles are ideal for interiors especially in wooden floors where they will easily take the weight of a person so are suitable to be walked on or in interiors on walls supplying room ventilation. They engage very well with the metric internal flanges of the cavity wall sleeves in the single metric air brick and double brick sizes items CAV3 and CAV6.

Customers may want the grilles to go rusty or prime and paint the grilles to their own colours with oil or epoxy paints but in order to do this please order grey or painted black finish and on the order make a note that you want them “BARE METAL UNFINISHED”.

For larger orders we can supply air bricks in any RAL colour, professionally primed with 3 part epoxy + 2 part gloss or matt top coat at an additional cost – please email item number, quantity and RAL number for a proforma cost for this.

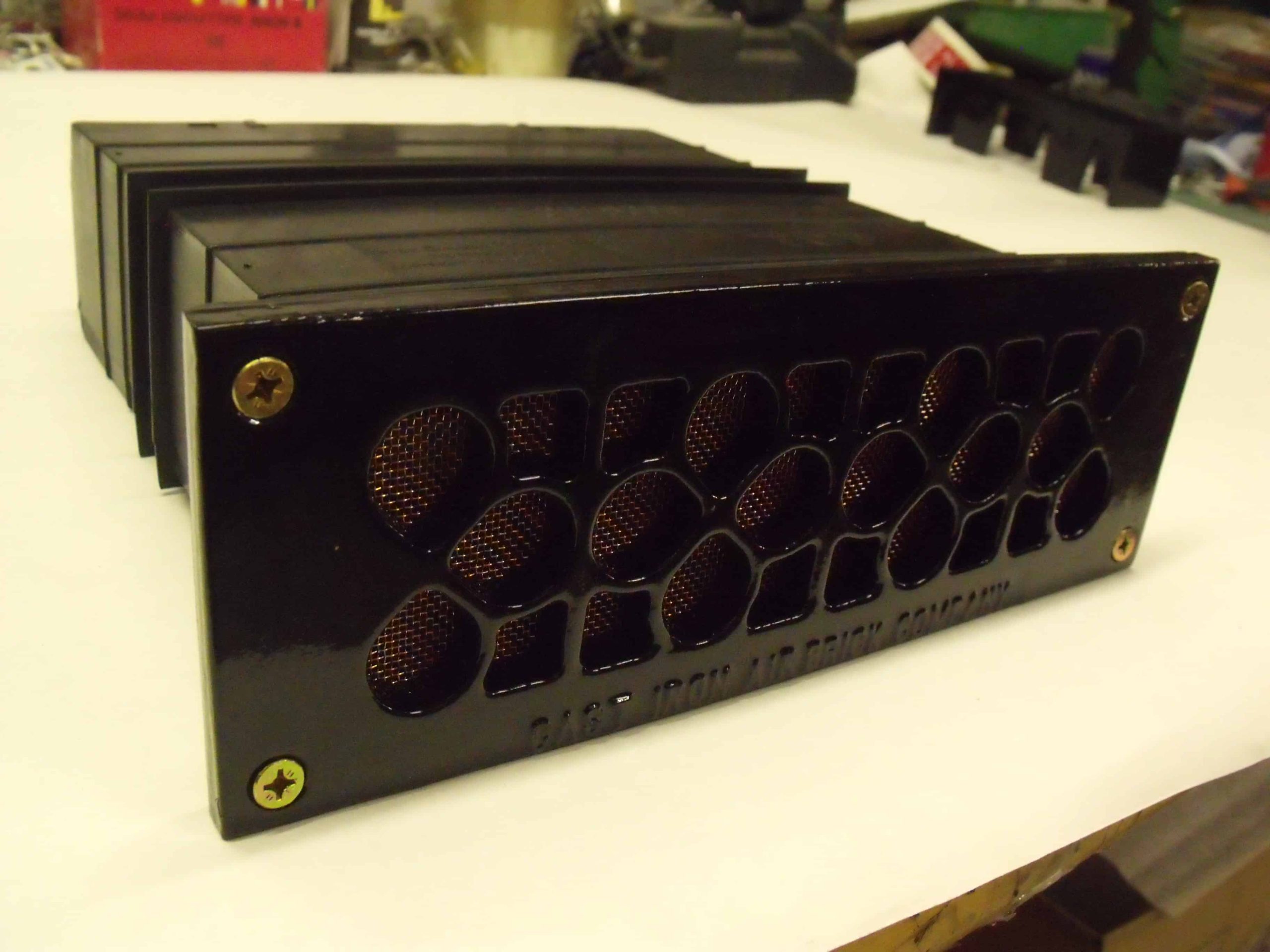

Mesh can be added for an additional cost of £15.

Please see product specification & sizes in the table below.

Clear selection

Specification PDF for Cast Iron Grilles ciabgrille1

Item Nom. Size (Inch) Exact size (mm) Weight (kg) Air Flow mm2 (with mesh) Thickness (mm)
DAY104 10 x 4 267 x 95 1.2 6900 (4550) 10
DAY107 10 x 7 267 x 170 2 13800 (9100) 10
