|Item||Nom. Size (Inch)||Size (mm)||Vent Size (mm)||Weight (kg)||Air Flow (mm2)||Plate Thickness (mm)||Reverse Depth (mm)|
|Fly 9||9 x 9||226 x 226||16||2.8||13,000 (with mesh)||7||45|
British Products Made in British Foundries
FLY9 Air Brick
The 9 x 9 Fly Screen Air Brick is one of our most popular air bricks and is available with a choice of finishes, bare as standard or painted black (+£10)

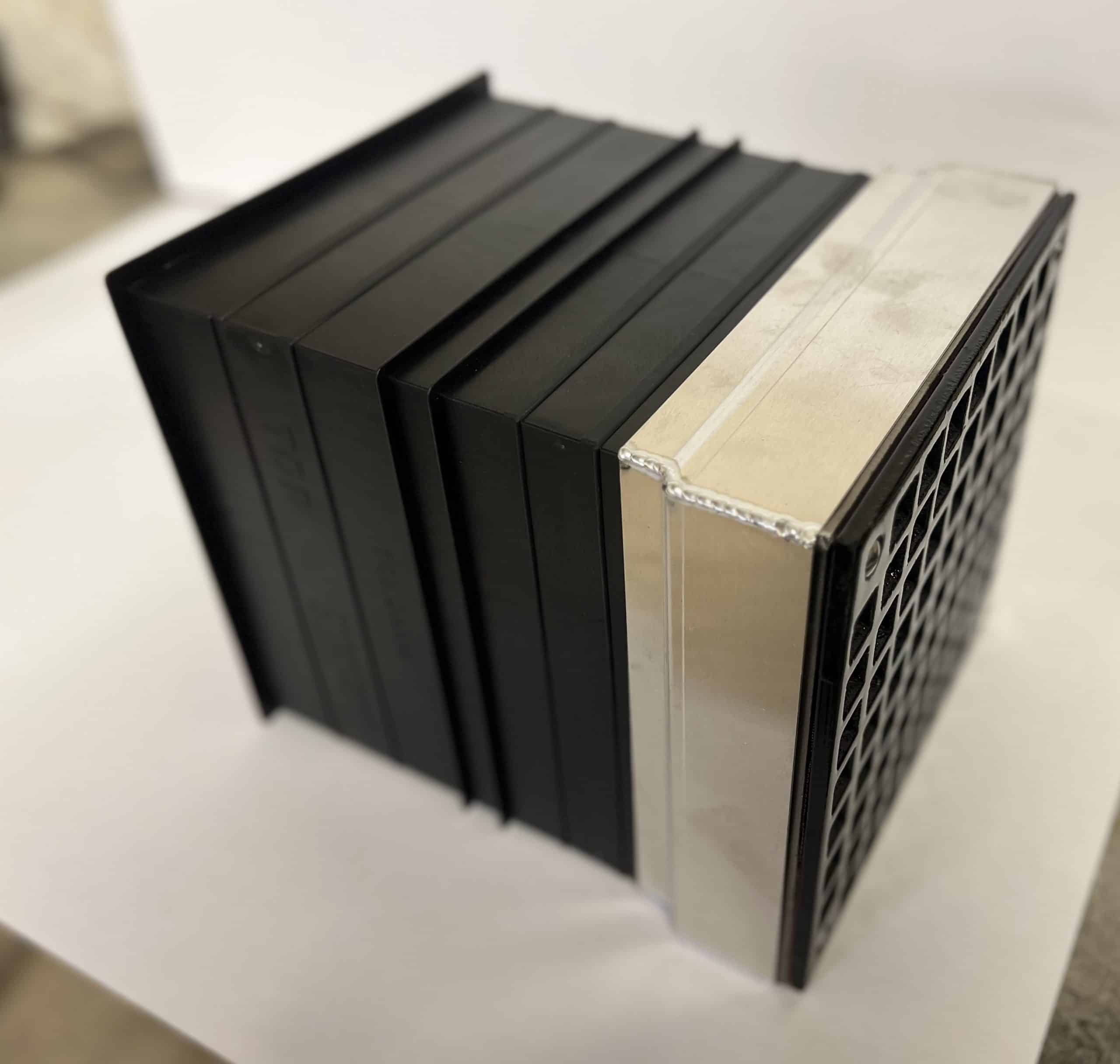

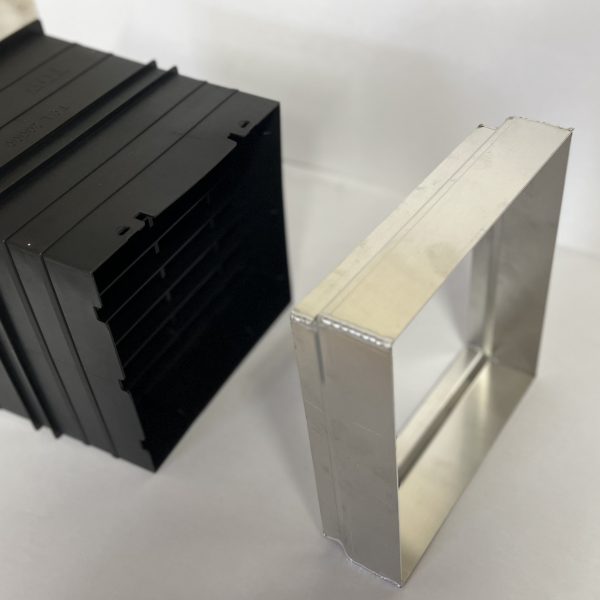

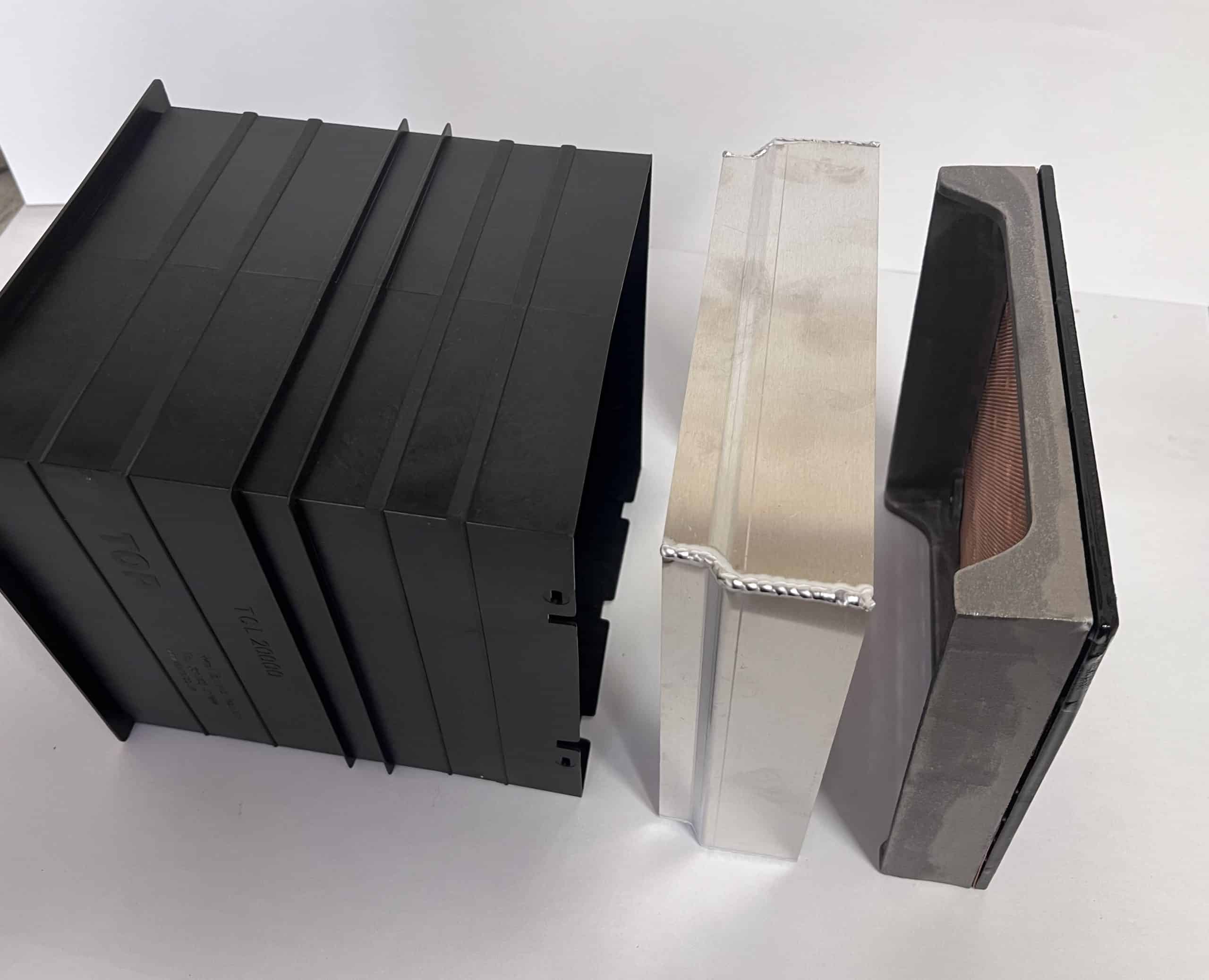

Mainly used as an exterior air brick, supplied to the London Olympics 2012 for use in the athletes village it can also be used with cavity wall sleeve item CAVHEXT9 and a heritage grille of similar size (item HER9) for the interior grille.
The mesh is a copper mesh of 1mm gauge with 1mm x 1mm square holes ideal for preventing ingress of flies, wasps and rodents.
Product specifications can be found in the table below.
Fly Screen Air Bricks
The Fly Screen air bricks are supplied with a fitted copper mesh which is especially useful to prevent ingress of foreign objects into ducting and ventilation systems, ie. insects, cigarettes, matches, gum and litter etc.
They have been installed in a number of medical establishments and dentists especially in listed buildings and are very effective at preventing the ingress of summer flies and midges. At low levels they are especially useful in preventing rodents gaining access into properties. The removable mesh can be cleaned and replaced as part of a planned maintenance system cutting down accumulation of dirt within ventilation ducting when fitted on air inlets and so reducing the risk of fires.
